Thrust Angular Contact Bearing Croxy

スラストアンギュラベアリング クロクシー
  • ■First in the market, Angular contact bearing for JIS 69 series.
  • ■Enable to downsize ball screw support unit

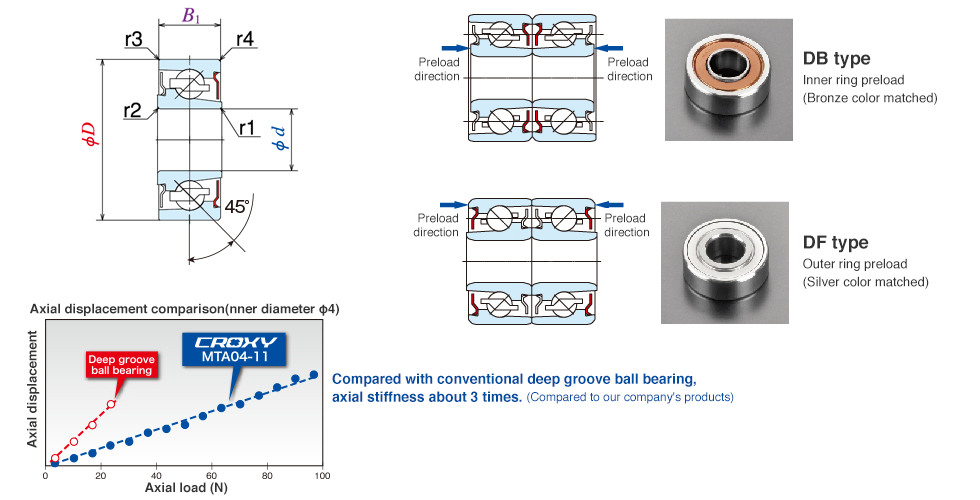

  • ■Three times higher axial stiffness over standard deep groove ball bearings (ISC data)
  • ■Achieved maintenance free with high quality grease filling and double shielded design
  • ■Easy installation by providing preload combination. (Recommended tightening torque is enclosed with the actual product)
  • ■Available with anti-fretting grease (EA7) and clean grease (LG2)
  • ■Accuracy class:P5

Application example

  • Ball screw support
  • Actuator support
  • Support for Robot arm part
  • Support Unit
  • Chip mounter
  • Reduction gear, etc.

Standard specification (material + grease)

  • High Carbon Chromium Bearing Steel SUJ 2 + Long Life Urea Grease EA7
  • Stainless steel ES-1 + Low particle emission grease LG2

Product video

Video of the example of using the Croxport

Small ball screw mounting device

Main dimension

Main dimension

Single bearing

Bearing numbers Single bearing
d
mm		 D
mm		 B1
Outer diameter width mm		 Chamfering (minimum) mm
r1 r2 r3 r4
MTA02-06 2 6 3 0.1 0.1 0.04 0.1
MTA03-08 3 8 4 0.1 0.1 0.03 0.1
MTA04-11 4 11 4.5 0.2 0.2 0.1 0.2
MTA05-13 5 13 5 0.2 0.2 0.1 0.2
MTA06-15 6 15 5.5 0.2 0.2 0.2 0.2
MTA08-19 8 19 6.5 0.2 0.2 0.3 0.3
Bearing numbers Single bearing
Basic load rating (N)
Axial Radial
Dynamic load rating
Ca		 Static load rating
Coa		 Dynamic load rating
Cr		 Static load rating
Cor
SUJ2 Stainless SUJ2 Stainless SUJ2 Stainless SUJ2 Stainless
MTA02-06 555 470 450 360 288 245 92 75
MTA03-08 960 820 840 670 480 410 172 138
MTA04-11 1470 1250 1410 1130 745 635 282 227
MTA05-13 2090 1777 2170 1740 1080 915 440 355
MTA06-15 2760 2350 2950 2360 1390 1180 580 465
MTA08-19 4000 3400 4350 3480 2030 1730 870 700
Bearing Numbers Bearing single
Axial load Capacity
N		 Limiting rotating speed
min-1		 CAD data download
DFS DBS
MTA02-06 87 26,000 DXFファイル DXFファイル
MTA03-08 164
 22,000
 DXFファイル DXFファイル
MTA04-11 464 17,000 DXFファイル DXFファイル
MTA05-13 549 16,000 DXFファイル DXFファイル
MTA06-15 854 14,000 DXFファイル DXFファイル
MTA08-19 1520 13,000 DXFファイル DXFファイル

* Axial load capacity : Load on which run-up load or Brinell pressure mark occurs

DB combination
DB type
DF combination
DF type

Single bearing

Bearing number Bearing combination
DB combination (mm) DF combination (mm)
Mounting section Within combination inner ring
Bb		 Mounting section Within combination inner ring Bf
Axis
φda
minimum		 Housing
φDb
maximum		 Axis
φdb
minimum		 Housing
φDa
maximum
MTA02-06 3.0 5.3 5.8 2.8 5.0 6.2
MTA03-08 4.4 7.2 7.72 3.9 6.7 8.28
MTA04-11 6.2 9.5 8.6 5.1 8.9 9.4
MTA05-13 7.2 11.3 9.6 6.1 10.8 10.4
MTA06-15 8.6 13.2 10.5 7.2 12.5 11.5
MTA08-19 11.4 16.8 12.36 9.4 15.8 13.64
Bearing numbers Bearing combination
Axial stiffness
(N/μm)		 Set mass
(Reference) (g)		 Recommended Preload
(N)		 Tightening torque
(N・cm)		 CAD data download
DB
combination		 DF
combination
DB DF
MTA02-06 21 0.8 7 7 20 DXFファイル DXFファイル
MTA03-08 28
 1.7
 12 7 50 DXFファイル DXFファイル
MTA04-11 39 3.7 20 10 50 DXFファイル DXFファイル
MTA05-13 52 5.5 34 25 50 DXFファイル DXFファイル
MTA06-15 60 7.7 45 30 80 DXFファイル DXFファイル
MTA08-19 76 14 70 60 80 DXFファイル DXFファイル
Axial load and axial displacement of bearing
Axial load and axial displacement of bearing

Application example: Croxport

サポートユニット クロクポート

Compact support unit for ball screw support

The industry's first lightweight, compact and higher stiffness support unit for supporting miniature ball screws of 3 to 8 mm has been serialized.
